5G Equipment Compatible Hot-Dip Galvanized Finite Element Analyzed Tower Strengthening Parts for Structural Upgrades
In modern communication networks, the tower, as the core infrastructure supporting antennas and equipment, is paramount to structural integrity and safety. With the full arrival of the 5G era, heavier equipment (such as AAUs), more stringent load standards, and aging in-service towers present unprecedented challenges to original structures.
Our Tower Strengthening Parts are specifically engineered to meet these challenges. Through advanced engineering analysis and high-performance materials, we provide customized reinforcement solutions for lattice towers, monopoles, and guyed towers worldwide, extending tower life and enhancing network performance.
Why Is Tower Strengthening Necessary?
- Equipment Upgrades: The original design load capacity is insufficient for new 5G equipment or heavier antennas.
- Safety Compliance: Meeting updated building codes or more stringent wind/ice load requirements.
- Structural Repair: Restoring strength compromised by corrosion, fatigue, or accidental damage.
- Performance Optimization: Reducing wind-induced vibrations and enhancing tower stability in complex environments.
Core Product Series
We offer a comprehensive range of reinforcement components designed for seamless integration with existing tower structures:

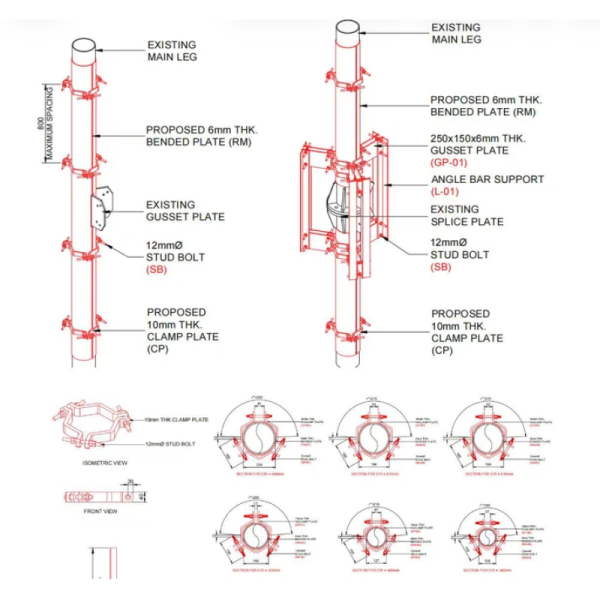

1. Main Member Reinforcements
- Description: Utilizes additional angles, channels, or steel plates attached via clamping or bolting to increase the cross-sectional moment of inertia of the tower legs, significantly enhancing axial load capacity.
- Application: Suitable for tower sections requiring a substantial increase in overall load-bearing capacity.

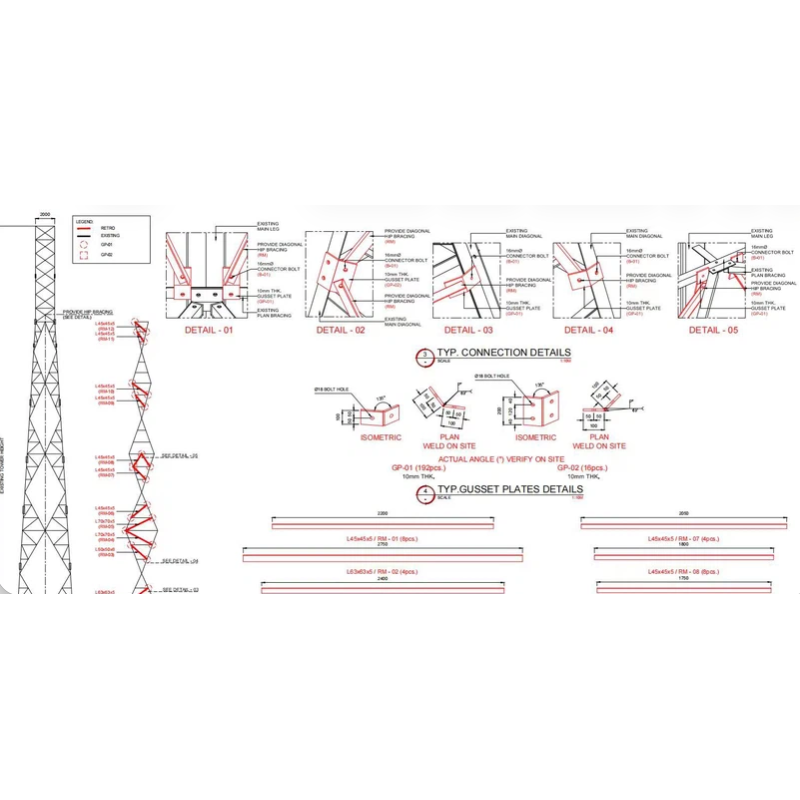

2. Bracing and Redundant Member Systems
- Description: Involves adding auxiliary struts, cross-bracing, or horizontal diaphragms to optimize load paths, reduce the slenderness ratio of existing members, and prevent local buckling.
- Application: Ideal for improving overall stiffness and torsional resistance of the tower structure.
3. Connection Reinforcement Components
- Description: Provides solutions such as stiffener ribs and gusset plates for flange connections, enhancing connection rigidity and preventing failure due to stress concentration at critical joints.
- Application: Suitable for critical areas like tower section connections and platform support points.
4. Vibration Control Devices
- Description: Includes tuned mass dampers, pendulums, or aerodynamic devices designed to effectively mitigate wind-induced vortex shedding vibrations, ensuring the safety and comfort of personnel and equipment on the tower.
- Application: Applicable for tall monopoles or slender towers sensitive to oscillation.
Our Advantages
- Customized Design: Each tower is precisely modeled using Finite Element Analysis (FEA) to provide an optimized, site-specific solution.
- Hot-Dip Galvanization: All steel components are treated with high-standard hot-dip galvanization, ensuring durability for over 30 years in harsh outdoor environments.
- Rapid Installation: Components are designed for ease of field installation. They are primarily prefabricated and connected using high-strength bolts, significantly reducing aerial work time and safety risks.
